Tube Expanding Machines ( With Hydraulic Drive And Powerpack )
|
|
Model
|

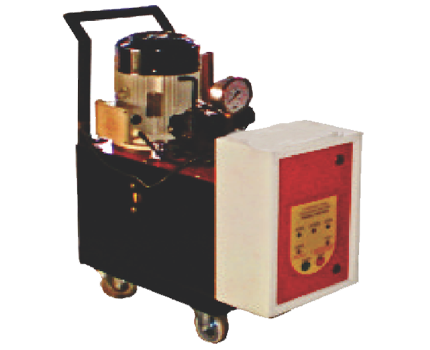

Powerflex Torque Control Unit
|
|
Input Electrical
|
3 Phase, 415V+/- 10%V
|
|
Electric Motor
|
3.7 KW / 5 HP, 1430 RPM, 50/60 Hz
|
|
Control Voltage
|
24V DC
|
|
Max. Working Pressure
|
100 BAR
|
|
Maximum Flow
|
23 LPM
|
|
Oil Tank Capacity
|
45 LTR
|
|
Dimensions
|
L820 x W325 x H985
|
|
Weight Without Oil
|
110 KG
|
Tube Expansion Drive Head
|
TYPE
|
PED-112
|
PED-300
|
PED-400
|
|
Input Electrical
|
3/8" & 1/2"
|
1/2", 3/4" & 1"
|
3/4" & 1"
|
|
Torque (KGM)
|
6.5
|
3.8
|
5.2
|
|
RPM
|
480
|
840
|
620
|
|
Tube Range
|
Minimum
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
Maximum
|
|
Tube O.D.
|
Φ 3/4"
|
Φ 1.1/2"
|
Φ 1.1/2"
|
Φ 3"
|
Φ 2"
|
Φ 4"
|
|
Φ 19.0 mm
|
Φ 38.1 mm
|
Φ 38.1 mm
|
Φ 76.2 mm
|
Φ 50.8 mm
|
Φ 101.6 mm
|
|
Tube Thickness
|
Φ 1/16"
|
Φ 13/32"
|
Φ 1/8"
|
Φ 5/32"
|
Φ 9/64"
|
Φ 1/4"
|
|
Φ 1.65 mm
|
Φ 2.77 mm
|
Φ 3.2 mm
|
Φ 4.0 mm
|
Φ 3.5 mm
|
Φ 6.35 mm
|
|
Tube Sheet Thickness
|
Φ 13/16"
|
Φ 1.1/4"
|
Φ 1.25/32"
|
Φ 1.1/4"
|
Φ 2.9/16"
|
Φ 2"
|
|
Φ 20 mm
|
Φ 32 mm
|
Φ 45 mm
|
Φ 32 mm
|
Φ 65 mm
|
Φ 50.8 mm
|
|
Dimension
|
762 x 254 x 254
|
762 x 254 x 254
|
762 x 254 x 254
|
|
Weight - KG(LBS)
|
9.2 (20)
|
11.0 (24)
|
11.5 (26)
|
Powerflex tube expansion system is supplied with following standard accessoires
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
