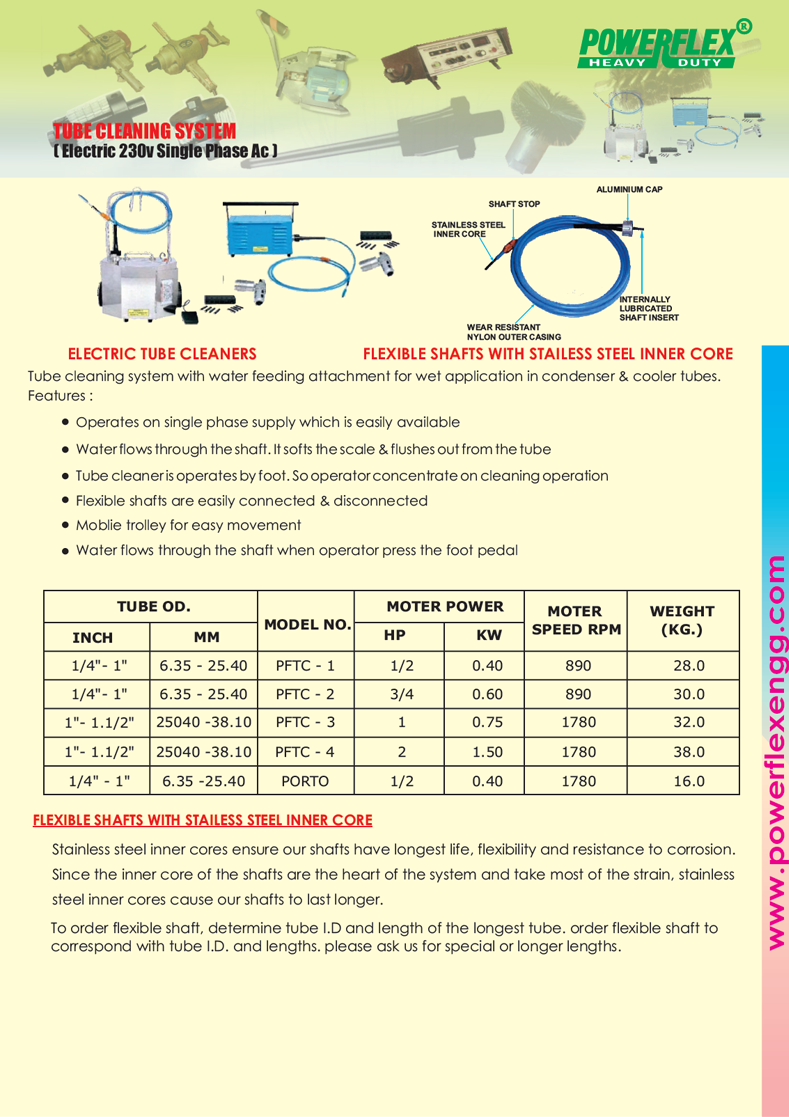

Tube Cleaning System ( Electric 230v Single Phase Ac )
|
|
|
|
Powerflex Tube cleaning system with water feeding attachment for wet application in condenser & cooler tubes. Features :
-
Operates on single phase supply which is easily available
-
Water flows through the shaft. It softs the scale & flushes out from the tube
-
Tube cleaner is operates by foot. So operator concentrate on cleaning operation
-
Flexible shafts are easily connected & disconnected
-
Moblie trolley for easy movement
-
Water flows through the shaft when operator press the foot pedal
| TUBE OD. | MODEL NO. | MOTER POWER | MOTER SPEED (RPM) | WEIGHT (KG) | ||
|---|---|---|---|---|---|---|
| INCH | MM | HP | KW | |||
| 1/4"- 1" | 6.35 - 25.40 | PFTC - 1 | 1/2 | 0.40 | 890 | 28.0 |
| 1/4"- 1" | 6.35 - 25.40 | PFTC - 2 | 3/4 | 0.60 | 890 | 30.0 |
| 1"- 1.1/2" | 25040 -38.10 | PFTC - 3 | 1 | 0.75 | 1780 | 32.0 |
| 1"- 1.1/2" | 25040 -38.10 | PFTC - 4 | 2 | 1.50 | 1780 | 38.0 |
| 1/4" - 1" | 6.35 - 25.40 | PORTO | 1/2 | 0.40 | 1780 | 16.0 |

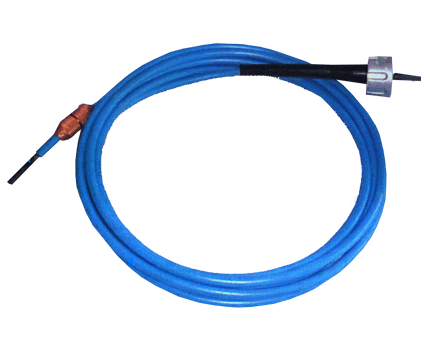

Flexible Shafts with Stainless Steel Inner Core
Stainless steel inner cores ensure our shafts have longest life, flexibility and
resistance to corrosion.
Since the inner core of the shafts are the heart of the system and take most of
the strain, stainless steel inner cores cause our shafts to last longer.
To order flexible shaft, determine tube I.D. and length of the longest tube. Order
flexible shaft to correspond with tube I.D. and lengths. please ask us for special
or longer lengths.
