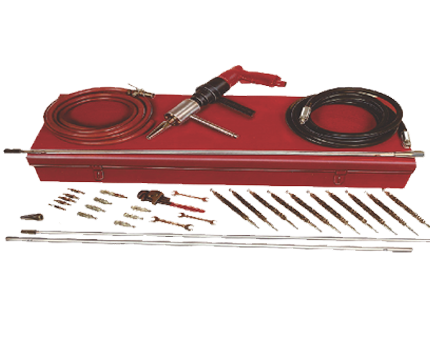

Portable Tube Cleaner is designed for cleaning straight tubes in condensers, coolers, chillers etc. These exchangers contain many small diameter tubes which vary from 3/8" to 11/4" in diameter and six to twenty feet in length.

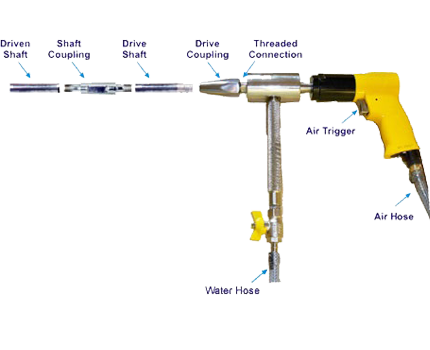

A tool head is fed into the tube on a rigid hollow shaft. The hollow shaft and tool head are turned by a portable drive handled by an operator at one end of the exchanger. Standard length of shafts are connected using couplings to clean required length of tube.

A water flushing system is attached to the drive. A stream of water conducted along the hollow shaft flushes loose deposits out of the tube and keeps the tool head cool.

Water flow and air drive are controlled independently eliminating excessive water consumption and mess. The use of one piece shaft is preferable where sufficient head room prevails.

Features :

• It's powerful portable cleaner for totally chocked tubes

• Water flows through the shaft. it softs the scale & flushes out from the tube.

• Water flows through the shaft when operator press the water gun trigger.

• Hollow drive shaft & hollow driven shaft can coupled together with shaft coupling to for the Required length of the tube which is to be clean.

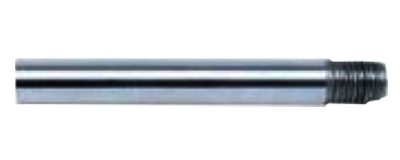

	Hollow Driven Shaft		Hollow Drive Shaft

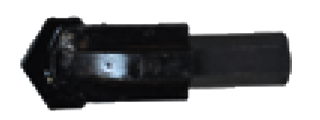

	Carbide Drill	Spiral Brush	Shaft Coupling	Drive Coupling
