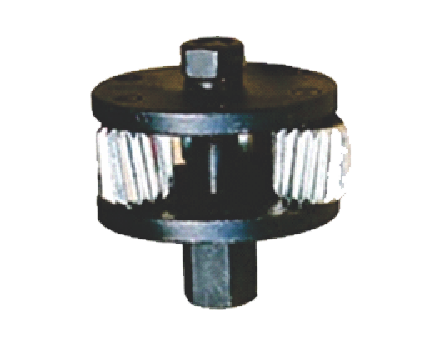

Designed for general tube descaling of process pipes, boiler, juice heater and vacuum
pan tubes. The design of this head is simple and its action is extremely effective.
These cutter heads are fitted with 3 cutter wheels one each, teeth cut straight,
teeth cut right and teeth cut left, which increase descaling speed and prevent grooving
of the scale. The side plates are reversible and double drilled to give maximum
length of service.
|
|
This spring loaded, self expanding, tool head is fitted with fifteen cutter wheels,
five each on three bridge type arm pins and is slightly tapered at the top end.
While the tapered top allows easy entry in the tube, the spring loaded arms allow
the cutter wheels to contract or expand according to scale conditions.
|
|

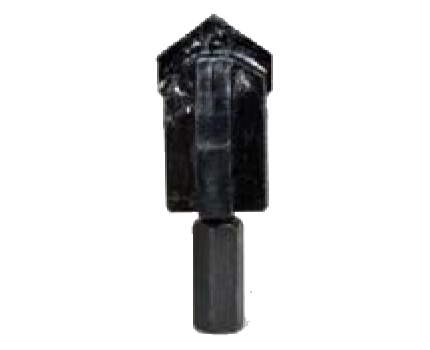

Designed for cleaning fully or partially blocked tubes of soft or hard deposits.
The cutting edges are tapered to a point to enter small openings. The drill roughs
out the deposit and is generally followed by use of a cutter head. It is supplied
with an adaptor for straight tubes and universal joint for curved tubes.
|
|
|
|

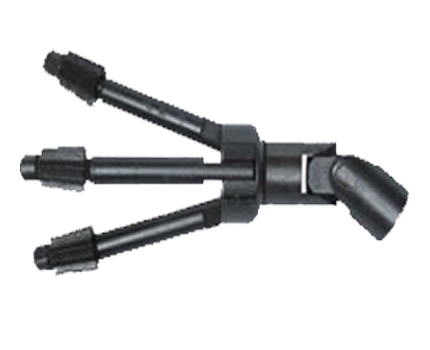

This tool head is for hard-to-get-at medium to extra thick deposits ranging from
gummy to hard. Four cone cutters fitted on arms of unequal length are pivoted at
the spider on the rear of the cutter head, which gives maximum tube cleaning range.
It is supplied with an adaptor for straight tubes and universal joint for curved
tubes.
|
|

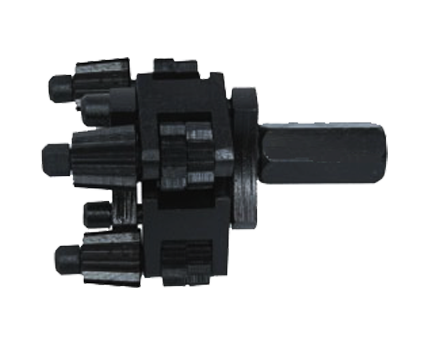

This model is a swing frame cutter head and therefore has a large expansion-contraction
range. It is fitted with 3 to 5 cone cutters (depending on size) to break up heavy
shoulders of scale and long lines of star cutter wheels for thorough cleaning of
remaining scale in one pass. It is supplied with an adaptor for straight tubes and
universal joint for curved tubes.
|
|
